Detection channel |
4 channels |
|
Detection speed |
2～3pieces/min |
|
Frequency range |
10Hz～10MHz |
| Gain |
0～99dB，side size 0.1dB |
|
Advanced filtering |
Yes |
|
High pass |
0.1Hz～650Hz |
|
Low pass |
1Hz～10000Hz |
|
Phase rotation |
0-360° side size 1° |
|
Calibration crack |
5.0 mm x long, 0.01 mm x wide and 0.2 mm deep |
|
Computer Full Digital Parameter Adjustment |
| Synchronized alarm output controlled by internal and external clock |
| High Precision End and End Signal Excision Function |
| High Precision Real-time and Delayed Alarm Output |
| Fast Digital/Analog Electronic Balance |
| Delayed Hidden Removal Function with Memory Trajectory |

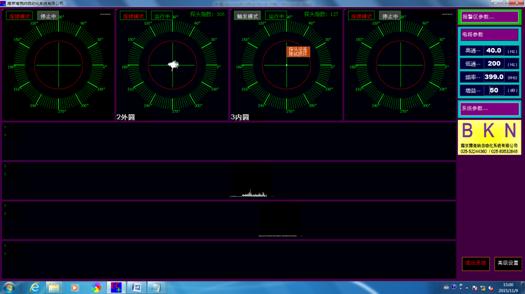

| Real-time impedance plane display |
| The instrument can match any probe |
| Remote Automatic Help System |
| Man-machine interface in Chinese and English |
|
Non-equal Amplitude Phase/Amplitude Alarm Domain |
